Transitions Fittings & Risers for Gas
Gas
Transition Fitting PE/Steel Galvanised, Weldable
Code: 100
Material: PE 100 SDR 11/Seamless Steel Hot Finished as UNI EN 10240 A1
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736 , ISO 17885, EN 1555-3
Use: Gas
Riser PE/Steel Coated Threaded, Bend
Code: 131
Material: PE 100 SDR 11/Steel API 5L B Gr. coated
MOP: 5 bar
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting Pe/Steel Galvanised, Threaded
Code: 101
Material: PE 100 SDR 11/Seamless Steel Hot Finished as UNI EN 10240 A1
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736, ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting PE/Steel, Weldable
Code: 102
Material: PE 100 SDR 11/Steel API 5L B Gr.
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting PE/Steel Coated, Weldable
Code: 110
Material: PE 100 SDR 11/Steel API 5L B Gr. coated
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting PE/Steel Coated
Code: 111
Material: PE 100 SDR 11/Steel API 5L B Gr. coated
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting PE/Copper, Weldable
Code: 400
Material: PE 100 SDR 11/Copper EN1057
MOP: 5 bar
Standard: UNI 9736 , ISO 17885, EN 1555-3
Use: Gas

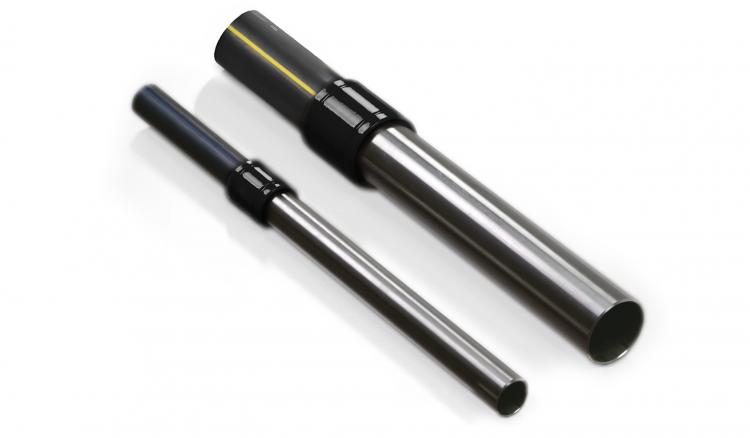

Transition Fitting PE/Stainless Steel AISI 316, Weldable
Code: 211
Material: PE 100 SDR 11/Stainless Steel AISI316
MOP: 10 bar
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas

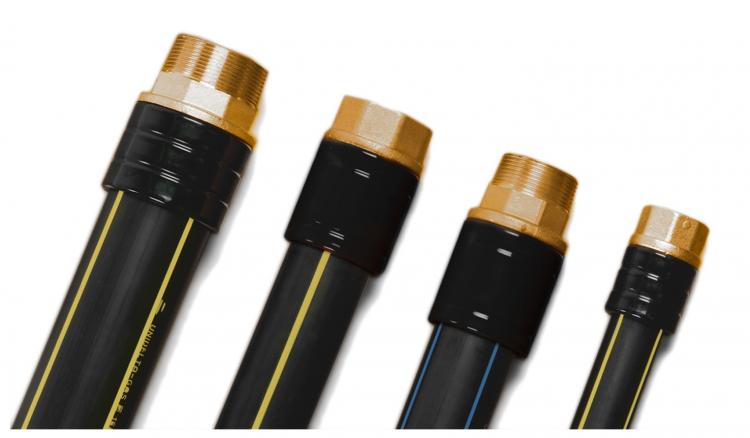

Transition Fitting PE/Brass - Male
Code: 300
Material: PE 100 SDR 11/Brass CW511L
MOP: 5 bar
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Transition Fitting PE/Brass - Female
Code: 301
Material: PE 100 SDR 11/Brass CW511L
MOP: 5 bar
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas

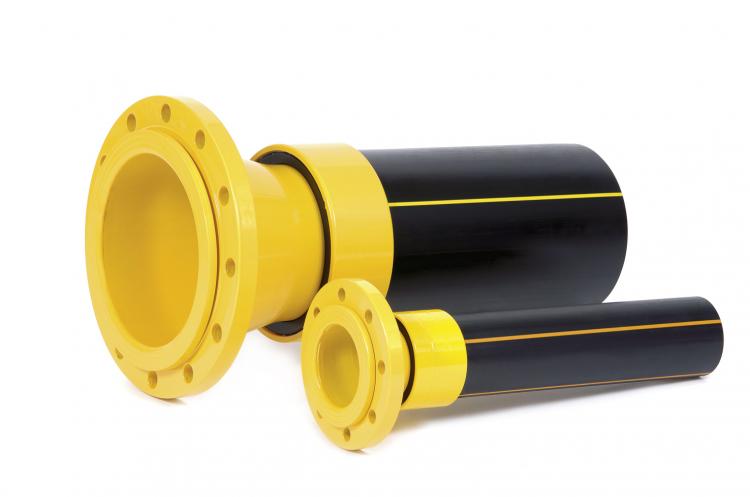

Flange Adapter
Code: 200.*.1
Flange: PN 10/PN 16 BS EN 1092 (Fixed)
Material: PE 100 SDR 11/Steel API 5L B Gr. coated PPA 571
MOP: 10 bar
Standard: UNI 9736 , ISO 17885, UNI EN 1555-3
Use: Gas
Flange Adapter
Code: 201.*.3
Flange: ASA 150 (Loose)
Material: PE 100 SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas
Flange Adapter
Code: 201.*.4
Flange: PN 16 BS EN 1092 (Loose)
Material: PE 100 SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas
Flange Adapter
Code: 201.*.6
Flange: PN 16 BS EN 1092 (Loose)
Material: PE 100 SDR 17/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas
Flange Adapter
Code: 201.*.7
Flange: ASA 150 (Loose)
Material: PE 80 Yellow SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 4 bar
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas

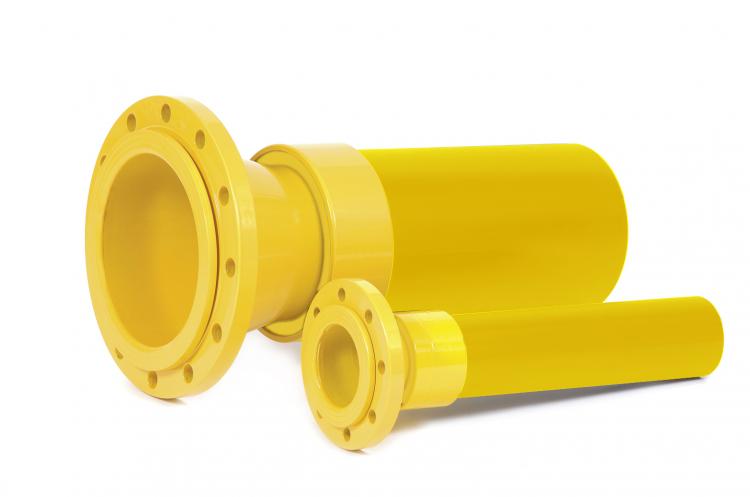

Flange Adapter
Code: 201.*.8
Flange: PN 16 BS EN 1092 (Loose)
Material: PE 80 SDR 11 Yellow/Steel API 5L B Gr. coated PPA 571
MOP: 4 bar
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas

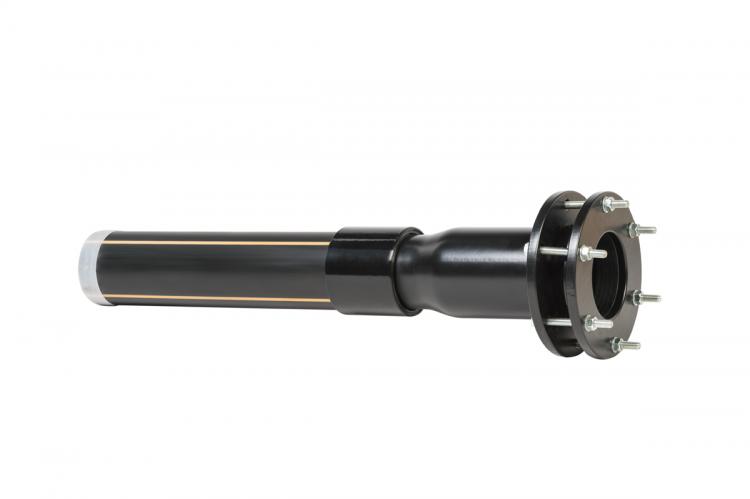

Cast Iron/PE Transition
Code: 205
Flange: PN 16 BS EN 1092
Material: PE 100 SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
On request: SDR17 Spigot
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas
Valve Flange Adaptor
Code: 202.*.6
Flange: ASA 150
Material: PE 100 SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
On request: 2 off
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas
Valve Flange Adaptor
Code: 202.*.9
Flange: PN 16 BS EN 1092
Material: PE 100 SDR 11/Steel API5L B Gr. coated PPA 571
MOP: 10 bar
On request: 2 off
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas

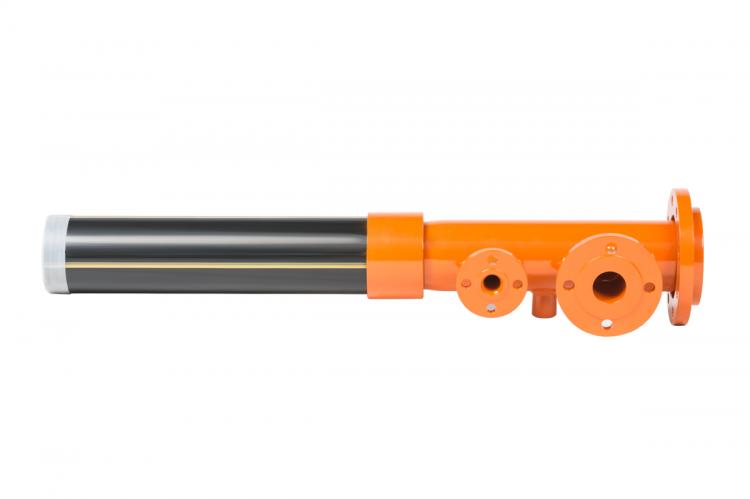

PRS Connector (Governor Riser)
Code: 203
Flange: PN 16 BS EN 1092
Material: PE 100 SDR 11 Orange/Steel API 5L B Gr. coated PPA 571
On request: SDR17 Spigot
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas

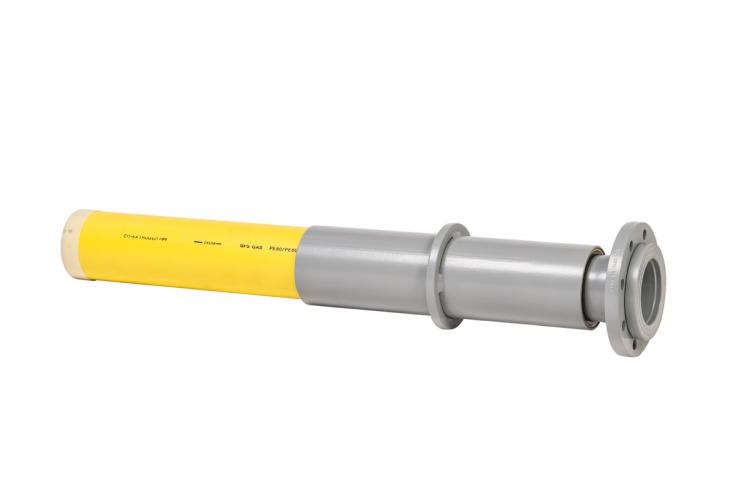

PRS Connector (Governor Riser)
Code: 204
Flange: PN 16 BS EN 1092
Material: PE 80 SDR 11 Yellow/Steel API 5L B Gr. coated PPA 571
On request: SDR17 Spigot
Standard: UNI 9736, ISO 17885, EN 1555-3, GIS/PL3
Use: Gas

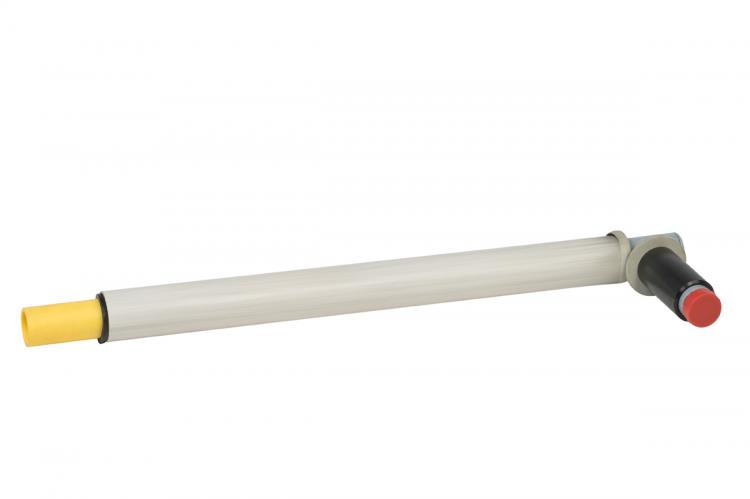

Building Entry Tee
Code: 113
Material: PE 80 Yellow SDR 11
MOP: 4 bar
Standard: GIS/PL3
Use: Gas
Balloon Saddle
Code: 750
Drilling: By drilling tool (not supplied - optional).
Material: PE100 Black
Standard: UNI EN ISO 15494, UNI EN 1555-3
Use: Gas in pressure
