Water Manifolds
Water
The REC4 Water Manifold line provides a safe and durable solution for assembling water meters. Our extensive product range is designed to meet every need, from unilateral manifolds with outlets on one side to bilateral manifolds with outlets on both sides.
The system is supplied in modular units, allowing you to quickly configure the number of outlets based on installation requirements. The connection between manifolds can be achieved through butt-fusion welding or electrofusion couplers, which can be carried out either in RECANATI EUROPE's factory or by a qualified plumber on-site.
Advanced production technologies that comply with two key standards, UNI EN 12201 and UNI 9736, guarantee the reliability of our product. Our manifolds are non-toxic, odourless, and certified for the safe transport of drinking water. They are resistant to corrosion and chemical agents, ensuring long-lasting performance. The manifold operates efficiently under normal working pressure of up to 16 bar, withstanding temperatures from -30°C to +60°C.

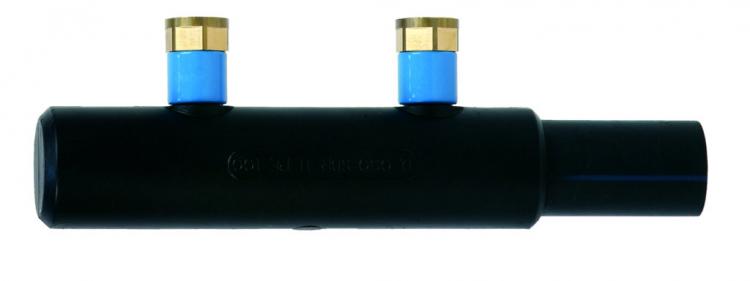

One-sided manifold weldable line end version
Code: U800
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

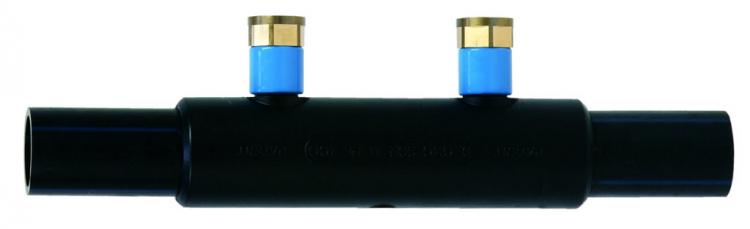

One-sided manifold weldable extension version
Code: U801
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

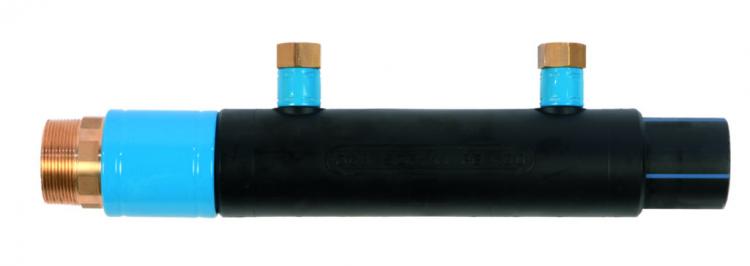

One-sided manifold threaded - end line version
Code: U802
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

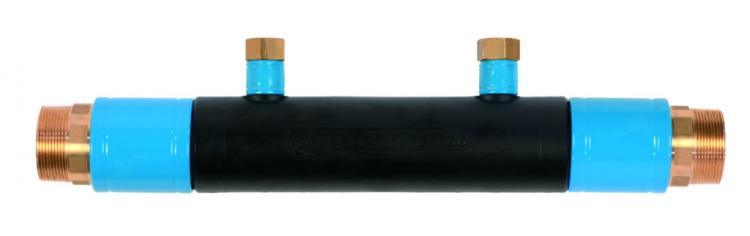

One-sided manifold threaded extension version
Code: U803
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm
One-sided manifold threaded - threaded version
Code: U804
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

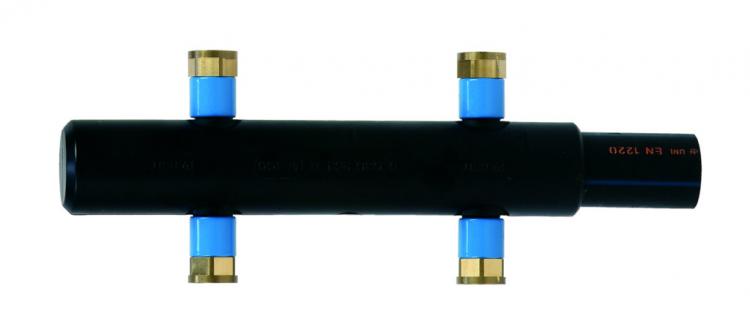

Two-sided manifold weldable line end version
Code: B900
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

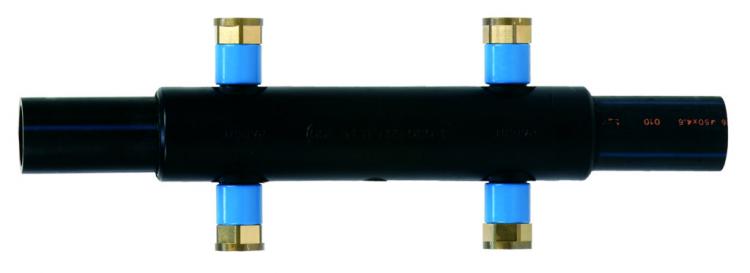

Two-sided manifold weldable extension version
Code: B901
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

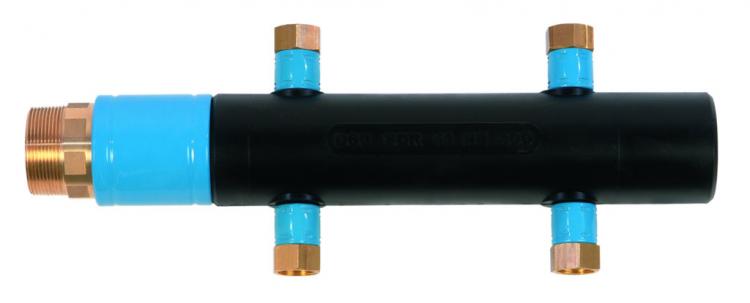

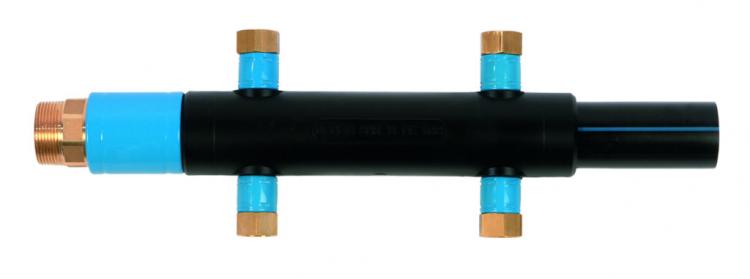

Two-sided manifold threaded - end line version
Code: B902
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm
Two-sided manifold threaded end extension version
Code: B903
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm

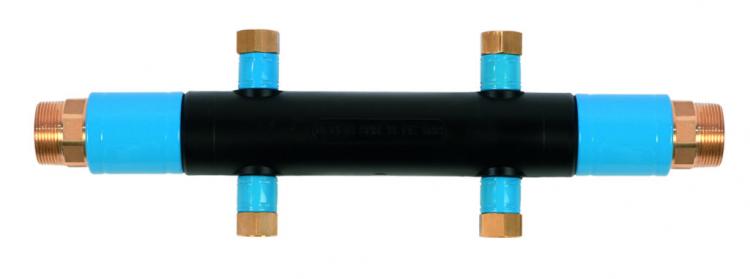

Two-sided manifold threaded version
Code: B904
Diameter: 32 mm 50 mm 63 mm
Material: PE100 SDR11
Pressure: >= 16 Bar
Standard outlets: 1/2", 3/4", fem.
Wheel base: 120 mm 180 mm
Centre feed manifolds (4 port)
- For multi-occupancy dwellings. - Water service pipe is connected to the 2” BSP thread and channelled to each outlet. - 4 port - 2” BSP threaded

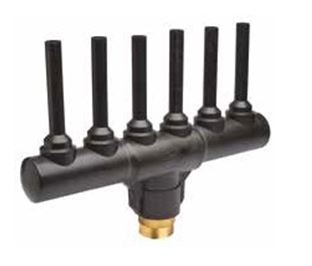

Centre feed Manifolds (6 port)
- For multi-occupancy dwellings. - Water service pipe is connected to the 2” BSP thread and channelled to each outlet. - 6 port - 2” BSP threaded
End feed manifolds (3 port)
- For multi-occupancy dwellings - Water service pipe is connected to the 2” BSP thread and channelled to each outlet. - 3 port - 2” BSP threaded connection at each end allows manifolds to be connected
End feed Manifolds (4 port)
- For multi-occupancy dwellings - Water service pipe is connected to the 2” BSP thread and channelled to each outlet. - 4 port - 2” BSP threaded connection at each end allows manifolds to be connected
End feed Manifolds (6 port)
- For multi-occupancy dwellings - Water service pipe is connected to the 2” BSP thread and channelled to each outlet. - 6 port - 2” BSP threaded connection at each end allows manifolds to be connected
